SimplyR2V

SimplyR2V is a simple Cad that also convert raster images to vector by drawing centerlines and outlines
The main features of SimplyR2V are:

  • Opening, creating, editing and saving geometry in industry standard DXF format.
  • Opening Svg file.

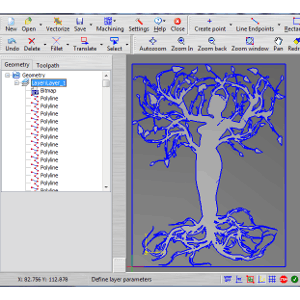

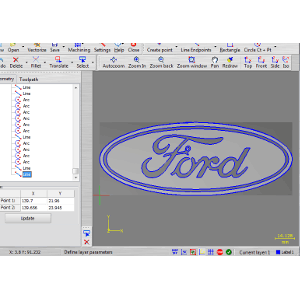

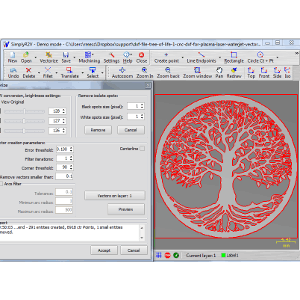

  • Vectorization with median line or outer edges mode of the raster images (Bmp and Jpeg) with recognition of arcs and circles.
  • Creating geometry with the Line, Rectangle, Arc, Circle, Ellipse, Polylinea and Spline functions.
  • Changing the geometry with the Fillet, Trim, Break, Merge, Split, Extend and Explode block functions.
  • Transform entity with Scale, Rotate, Mirror, Offset and Translate commands.
  • Conversion of any TrueType font into vectors.
  • Interface with toolbars and panels draggable.
Download Order Now
System Requirements

Microsoft Windows 98, ME, 2000, XP, Vista, Windows 7/8/10
Pentium 3/4 or AMD CPU - 300 MHz or more
True color Video Card - 800 x 600
256 Mb RAM
5 Mb free disk space

Info

Version: 3.66 Trial
Released: January 24, 2020
File Size: 1.7MB
Free Trial Limitation:
Drawing cannot be saved in Dxf
