Mr Soft - Bmp2Mc for Mastercam



  • Bmp2Mc is an Add-ins for Mastercam v8 and v9 that reads the files in bitmap format (BMP grayscale) and converts into 3d toolpath.
  • Grayscale is quantified to adjust Z-axis depth, different tool overlaps, depths and tool radius are permitted.
  • Final sizes of X-Y output can be scaled and stored in Operations-manager of Mastercam.
  • Bmp2Mc uses the different layers or shades to produce the depth of cut or Z-axis, as well as scaling the X-Y coordinates to the desired carving size.
  • Bmp2Mc manages flat, spherical and conical tools. The operation created in Mastercam could be simulated, verified and processed.
  • Bmp2Mc also create an .STL file for use as model in advanced 3d toolpath, for verify or for use in other CAD/CAM applications.



System Requirements
Info
  • Mastercam Mastercam version 8.1 or 9 in order to work properly
  •  1.5 Mb free disk space
  • Version: 1.15
  • Released: Sep. 15,2003
  • File Size: 361Kb

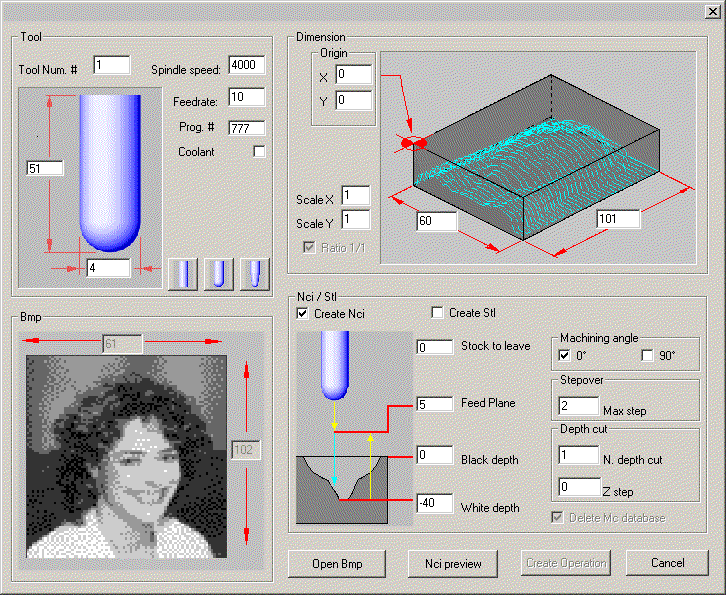

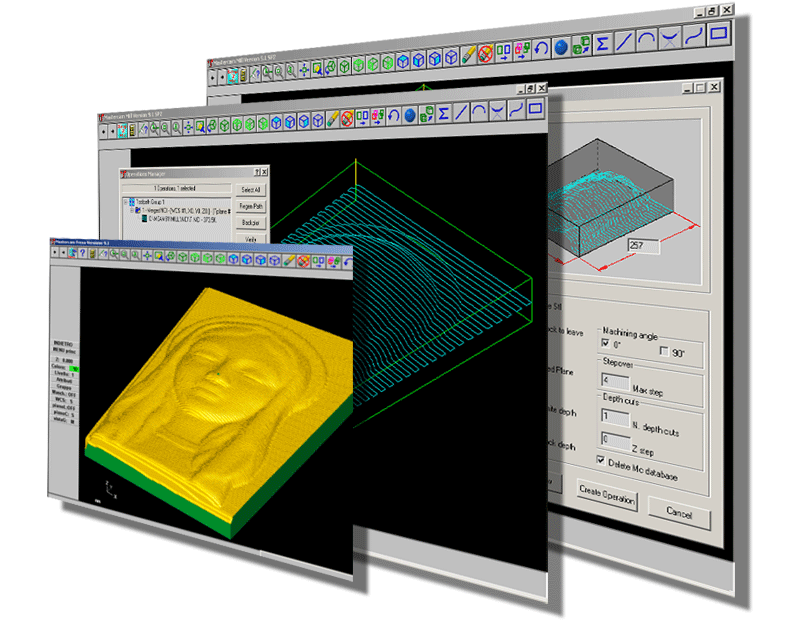

Screen Shots Download
