Lathe Rough Toolpath

Roughing toolpaths coarsely cut the part geometry in preparation of a finish toolpath

Dialogs of Lathe Rough Toolpath

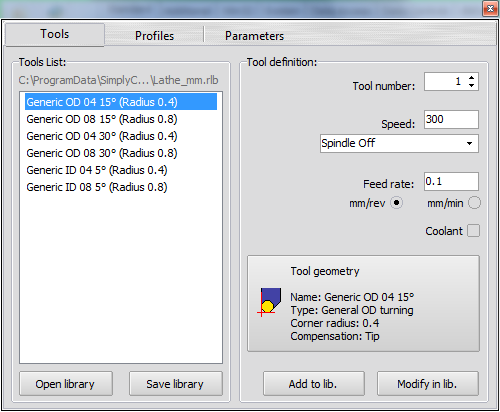

Dialog 1 - Tool Definition
This dialog sets the technological parameters of the tool. These parameters directly affect the G-code generated by the postprocessor.
More information....

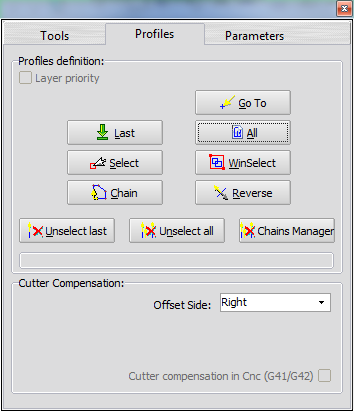

Dialog 2 - Defining Profiles
Use this dialog to define and edit the profiles for the selected operation.
The tool compensation is handled automatically.
More information....

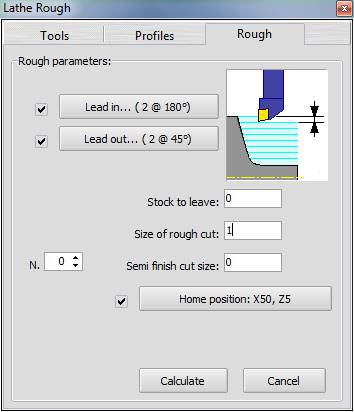

Dialog 3 - Contour Parameters
This dialog contains the parameters specific for the Contour machining.
More information....

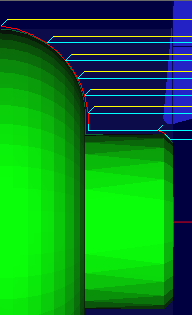

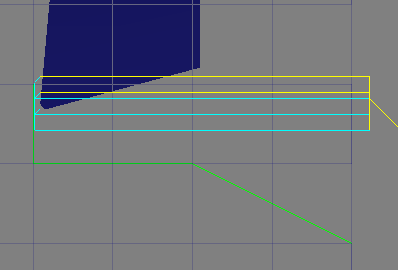

Examples of Lathe Rough toolpath
